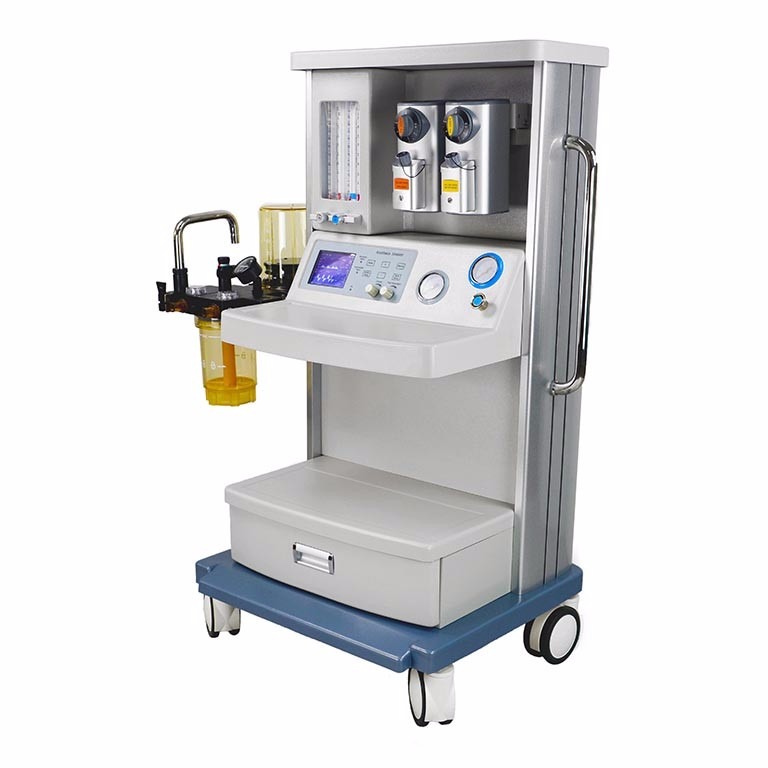

JINLING-01B two vaporizer anesthesia machine human anesthesia machine
Common Features
1. Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open
2. Anesthesia Ventilator: Built-in 5.4 inch TFT display, able-display Pressure-Time and Frequency-Time, displayed waveforms can be cycled instantly with a touch of a button
3. Standard integrated metallic modular respiratory circuit; completely solves the problem of gas sealing under high temperature disinfection, easy to clean and disinfect
4. Nonhazardous environmentally friendly frame, precise construction, elegant design, equipped with automated self-checking function during startup and an automatic self-calibrating sensor
5. High precision four tube flowmeter, fitted with interlocking oxygen-nitrous oxide supply, guarantees oxygen output is never lower than 21%
6. Oxygen failure alarm is supported by the anesthetic gas delivery system; when the oxygen supply within the circuit or cylinder falls below 0.20 MPa, an alarm will sound and the nitrous oxide will be cutoff
7. Power Failure Support Functions: Automatically converts to backup power mode during AC power outages
8. Alarms: Audible and/or visual alarms for tidal volume, airway pressure, power failure, oxygen failure and other alarms, also features a alarm query function
9. Equipped with infrared turbine flow sensor; precisely measures gas flows, stable and reliable
10. Vaporizer: Imported tank components assembled locally; Enflurance, Isoflurance and Sevoflurance (Halothance optional). Also possesses self-compensating functionality
11. Equipped with advanced international rotating Na-lime tank, easy-operate, requires only one hand, and uses imported PPSU material and temperature resistant to 134°C
12. Multi-parameter Patient Monitor: Optional
Advanced Model Exclusive Features
13. Vaporizer with dual tank design, effective for extending surgical lengths and features interlocking tank capability
Specifications
|
Model |
JINLING-01B |
|
Display |
5.4 inch TFT display |
|
Flowmeter Range |
O2: 0.1-10L/min |
|
N2O: 0.1-10L/min |
|
|
Ventilation Mode |
IPPV,SIPPV, IMV, SIMV, MANUAL |
|
Back-up Power Supply |
At least 4 hours |
|
Tidal Volume |
Adjustable range: 50-1500ml |
|
Display range: 0-2000ml |
|
|
Respiratory Rate |
1-99bpm |
|
Oxygen Supply Flow Rate |
25~75L/min |
|
Inspiratory/Expiratory (I:E) Ratio |
4:1-1:10 (capable of inverse ratio ventilation) |
|
Inspiratory Pressure Trigger |
.-10-10cmH2O (electronically controlled) |
|
SIGH |
1 sigh breath in every 80-160 breaths |
|
Vaporizer Concentration Ranges |
0-5% |
|
Vaporizer Slots |
Sigle vaporizer |
|
Gas Supply Pressure |
O2: 0.32MPa~0.6MPa: N2O: 0.32MPa~0.6MPa |
